SPECIFICATIONS

Brand Name: NONE

Function: Rangefinder for Golfing

High-concerned chemical: none

Model Number: HK-1500P

Origin: Mainland China

Power supply: CR-2(3V) Battery

Product name: New Golf Rangefinder

Range: 5-1000yds

Telescope Magnification: 6X

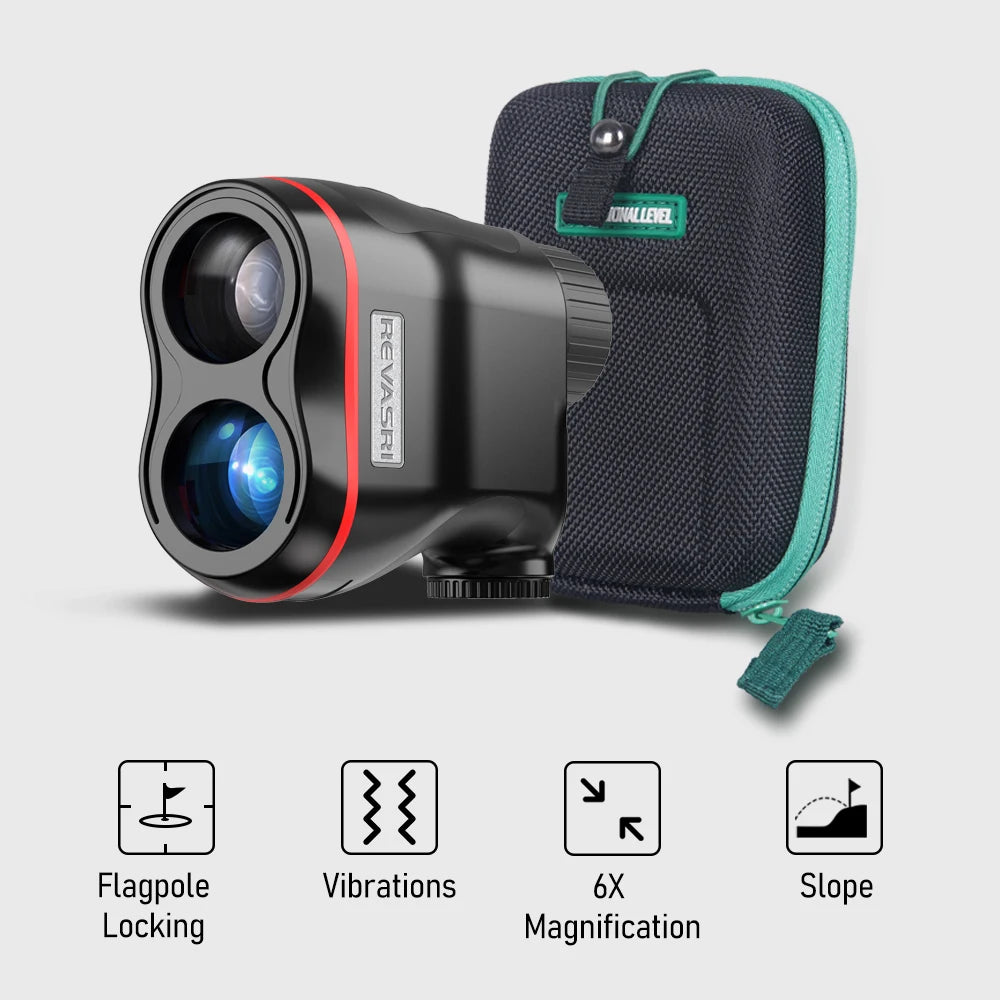

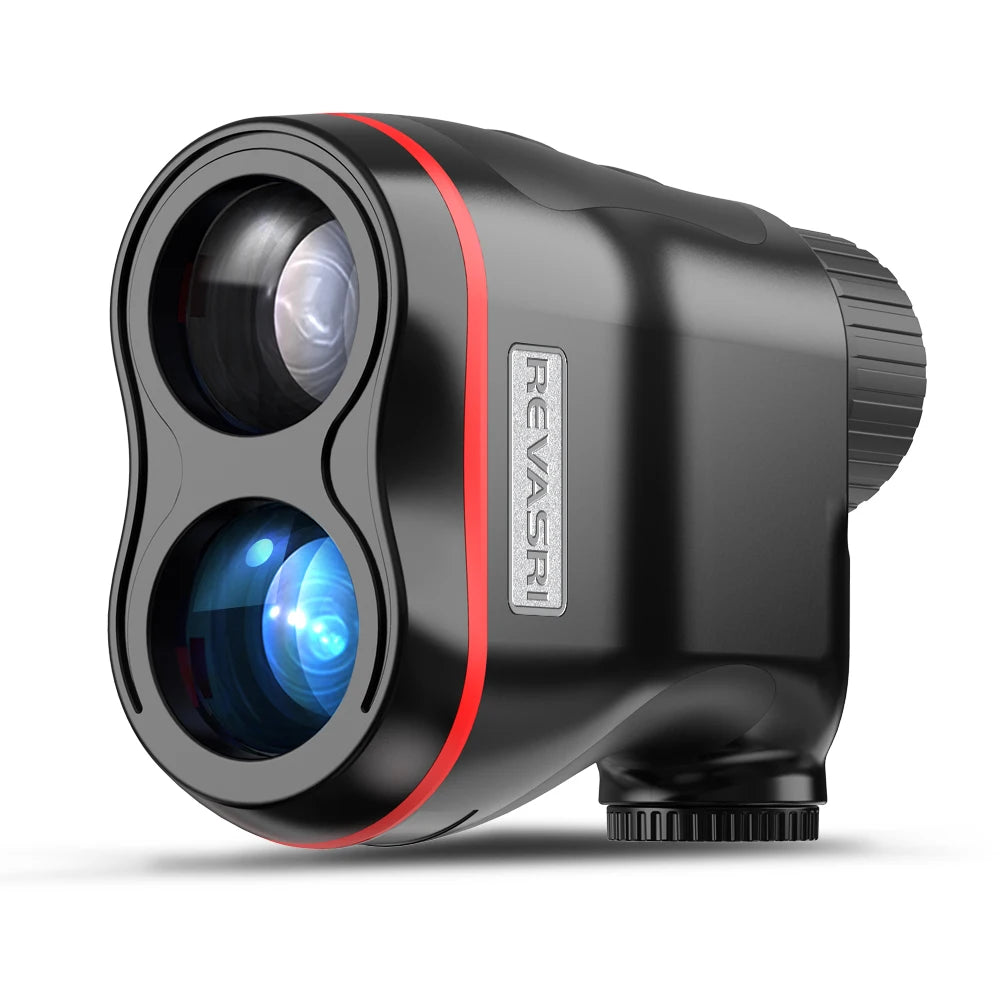

REVASRI Replaceable Battery HD Golf Range Finder, with Flagpole Lock Vibration and Slope Compensation, Rangefinder Designed for Golf

Precautions:

1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.

2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.

3. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.

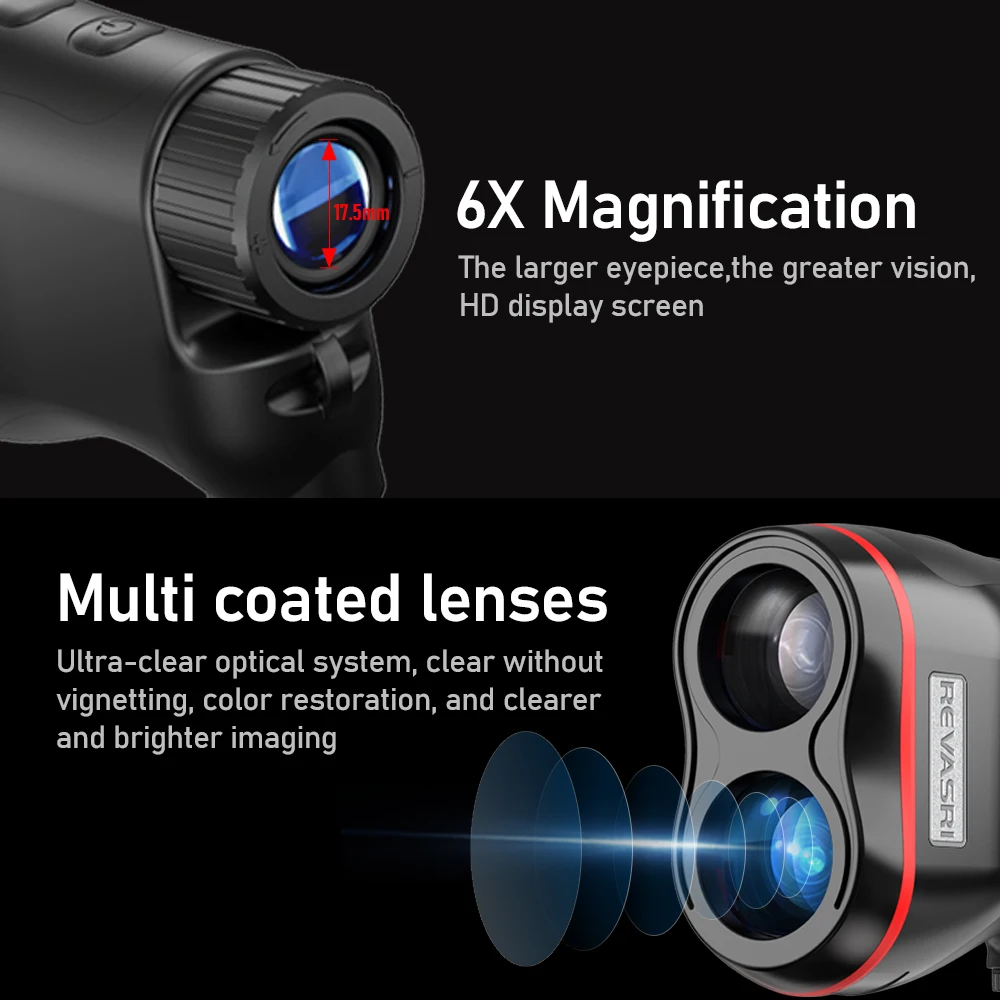

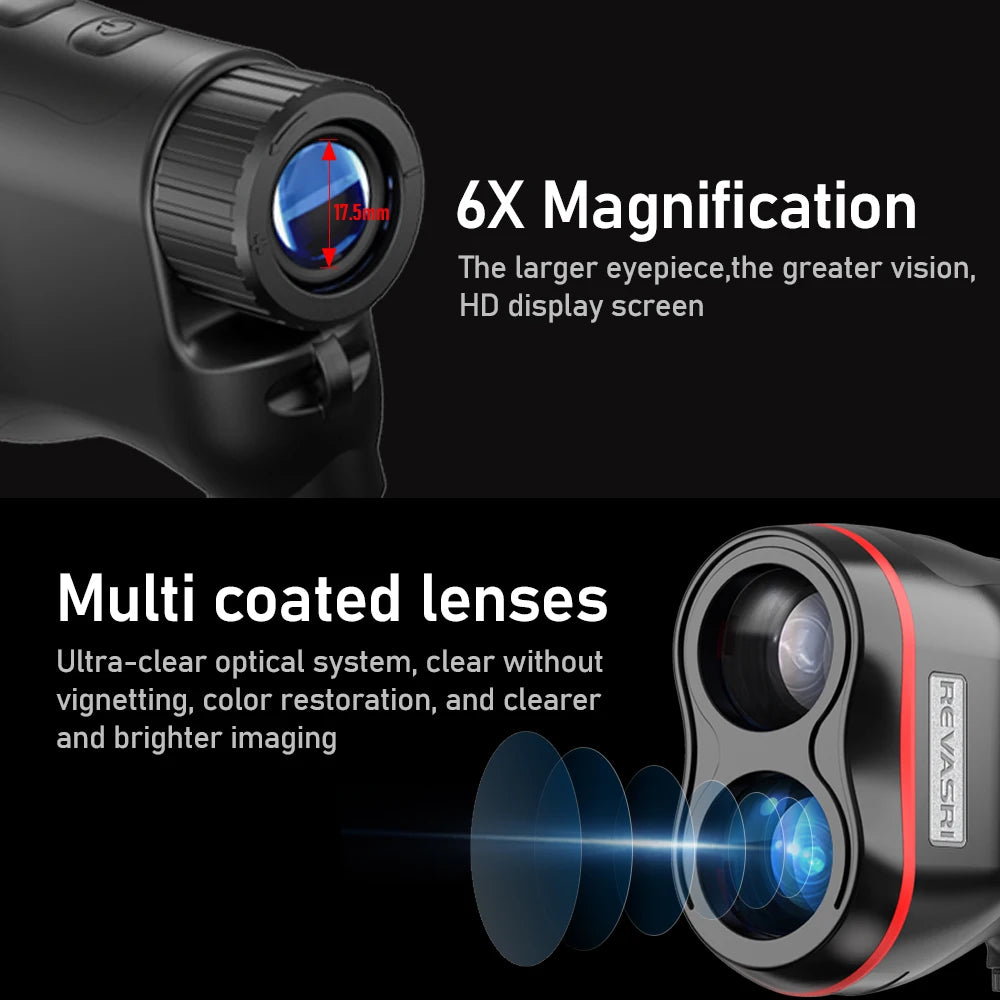

4.It supports 6x magnification, turn the eyepiece knob to achieve optimal clarity.

5.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.

Please review these precautions for the rangefinder. We recommend retesting the device outdoors on a target exceeding 5 meters. If you have further questions, feel free to contact us again, and we will respond promptly.

Product function:

1.Measuring distance: 5-1000M

2.Unit: Meter/ Yard

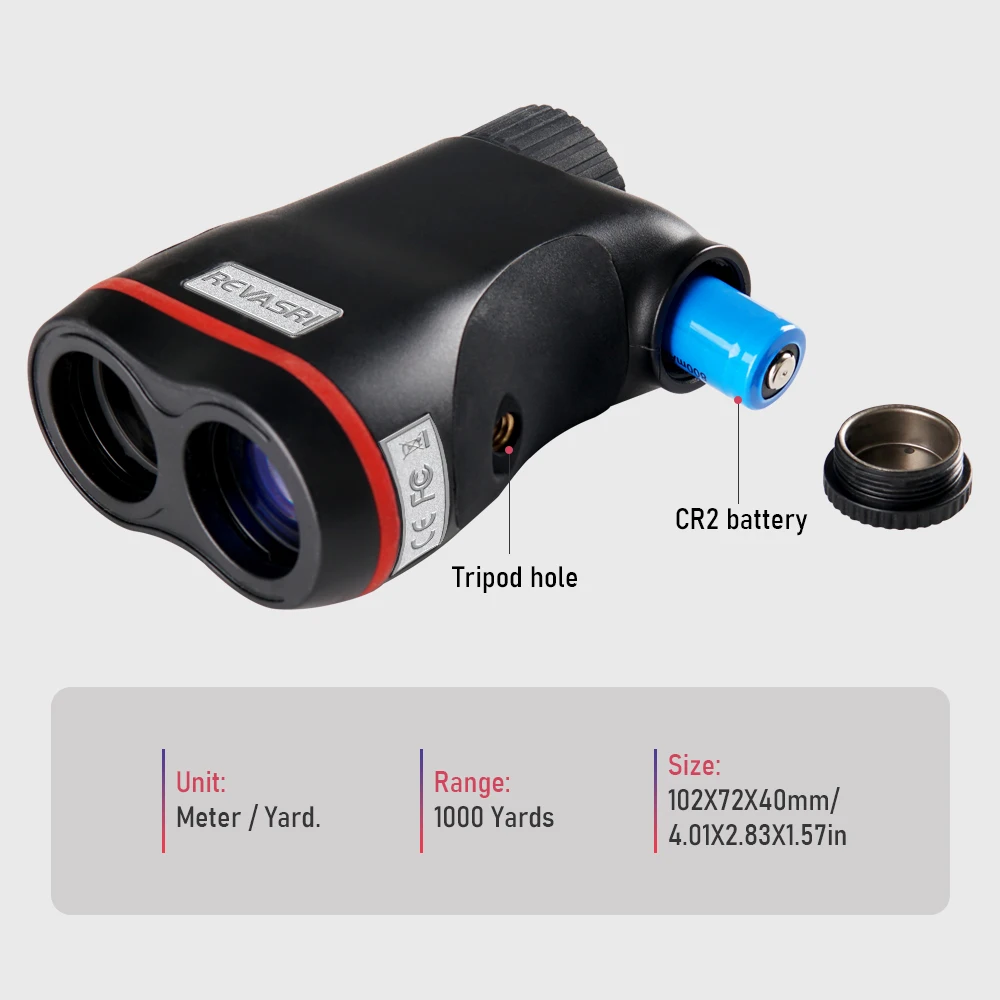

3.Power Supply:CR-2(3V)

Product Mode:

1.Single ranging mode

2.Golf distance compensation mode（Vibration when flagpole locking）

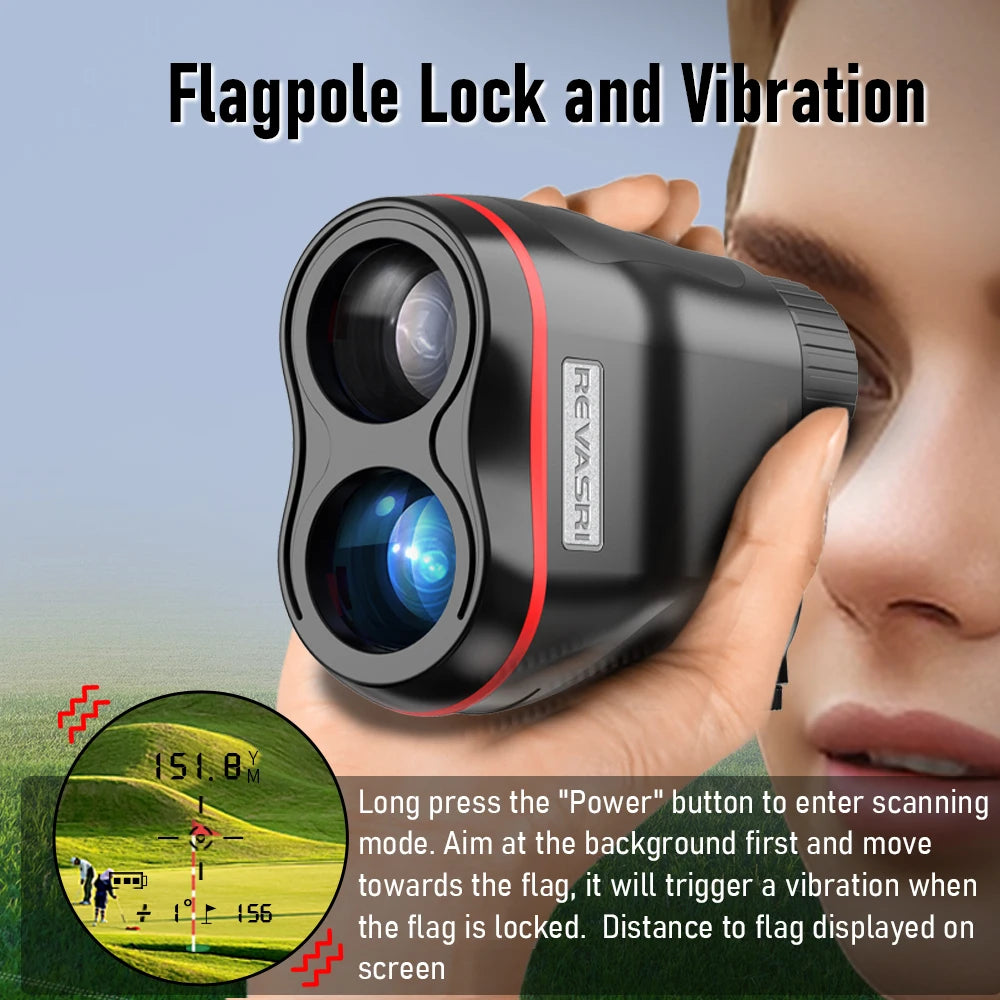

While pressing the Power button, the device can move slowly from one object to another, deliberately forcing the laser to hit multiple objects to ensure that only the closest object identified by the laser is displayed.When the measured object (flagpole) overlaps with the background, the flagpole cannot be accurately identified by a single ranging mode.

Press the Measure (Power) button to enter the Scan Measure mode and scan the background and flagpole. When the flagpole symbol flashes, it triggers vibration and flagpole locks, locking the measurement data.

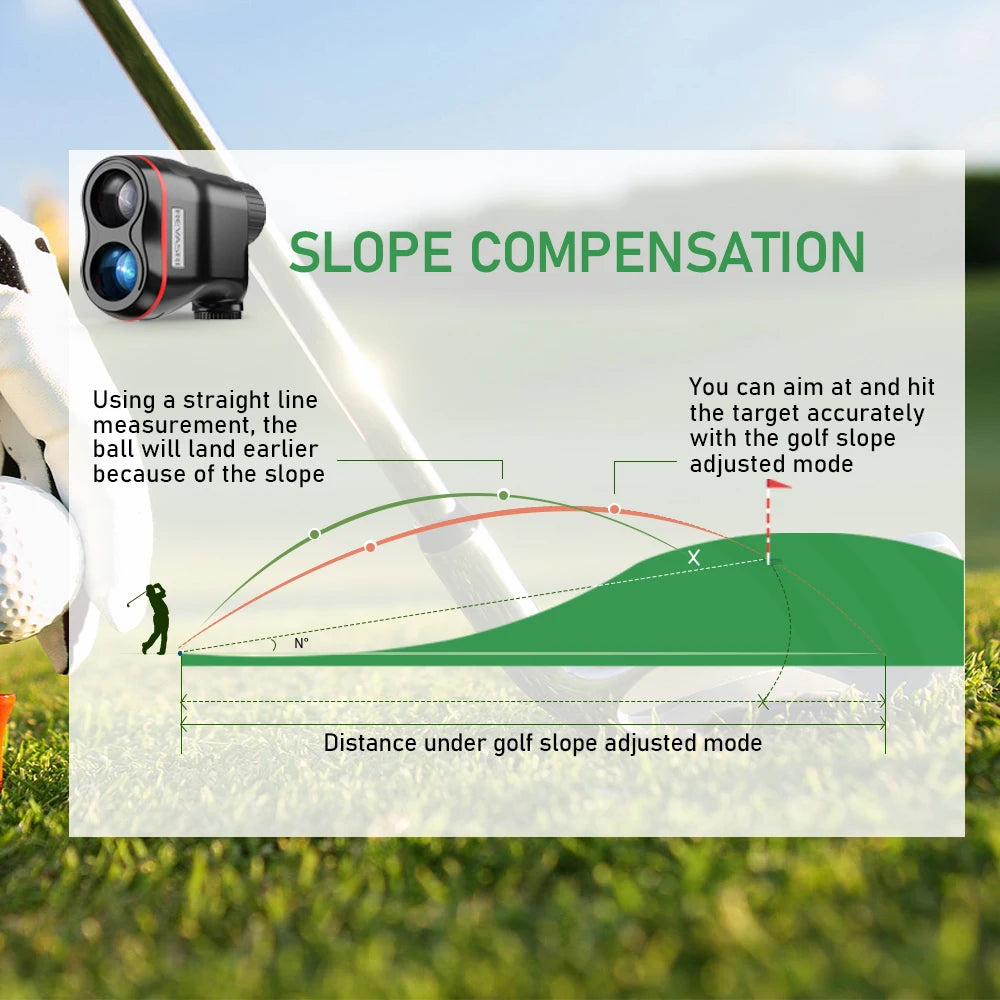

When the slope is positive, striking distance should be bigger than the straight-line distance.

When the slope is negative, striking distance should be less than the straight-line distance.
